100X60 Mini Jaw Crusher for Rock Ore Slag Steel Slag Coal Stone Crushing 220V 2mm~10mm Output Size

Installation & Attention1.The installation foundation of the machine body must be firm and flat to prevent the machine body from being broken due to uneven stress.2.Before commissioning, check whether the fastening screws are tightened and whether the pulley is flexible to be turned by hand. If any abnormality is found, the commissioning can only be carried out after troubleshooting.3.Before the test run, the no-load test run must be carried out. During the idle test, turn the small handwheel to check whether the regulating mechanism is flexible. It can only be used if there is no abnormality after half an hour of no-load.4.The hardness of the broken material should not exceed the medium hardness to avoid accelerating the damage of the parts and reducing the service life.5.For the convenience of discharging, the installation height of the whole machine can be properly raised during installation.Item:021088

• PARAMETER:Voltage:220V;Power:1.5KW;Feeding Inlet Size:60*100mm;Feeding size:≤55mm;Output size:2mm~10mm (Adjustable);Rotating Speed:1400 RPM;Capacity:250kg/h;Maximum Input size:3.9 * 2.3inch.This machine has NO PLUG and needs to be connected to the air switch for use by yourself.
• FEATURED DESIGN:The use of high-quality motors with stable performance, high efficiency, and durability.

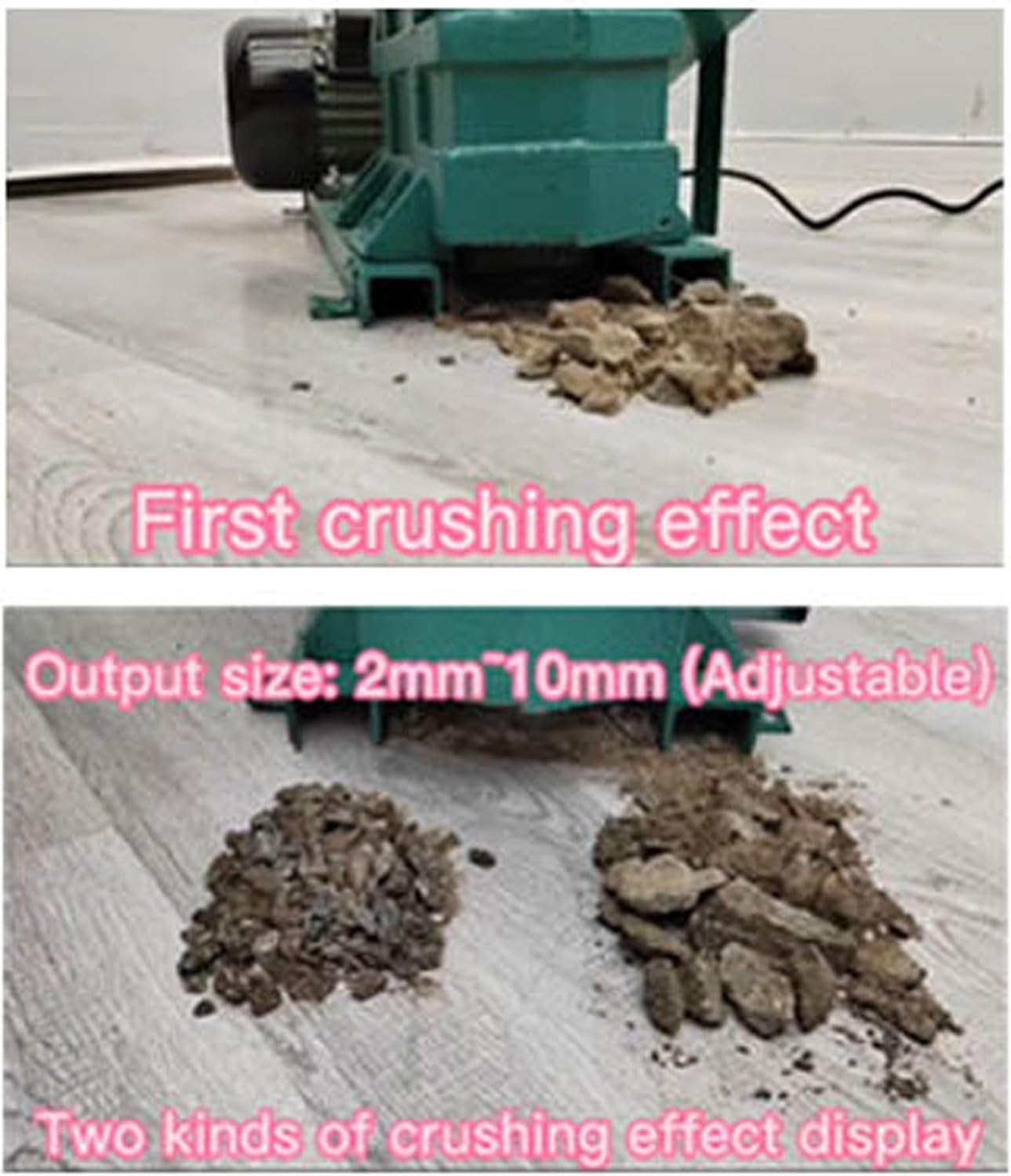

• ADJUSTABLE:Output size is 2mm~10mm(0.078-0.393inch) that the crushing size can be adjusted,uniform discharge particle size
• HIGH QUALITY:This jaw crusher is made of manganese steel which has more hardness than carbon steel.Robust and durable,with long service life
• WIDE APPLICATION:It is applicable to medium and fine crushed materials for the purposes of laboratory and production and primarily provided as environmental protection equipment for coal, electric power, mine, geology, chemical, metallurgy, building material and other industries.
